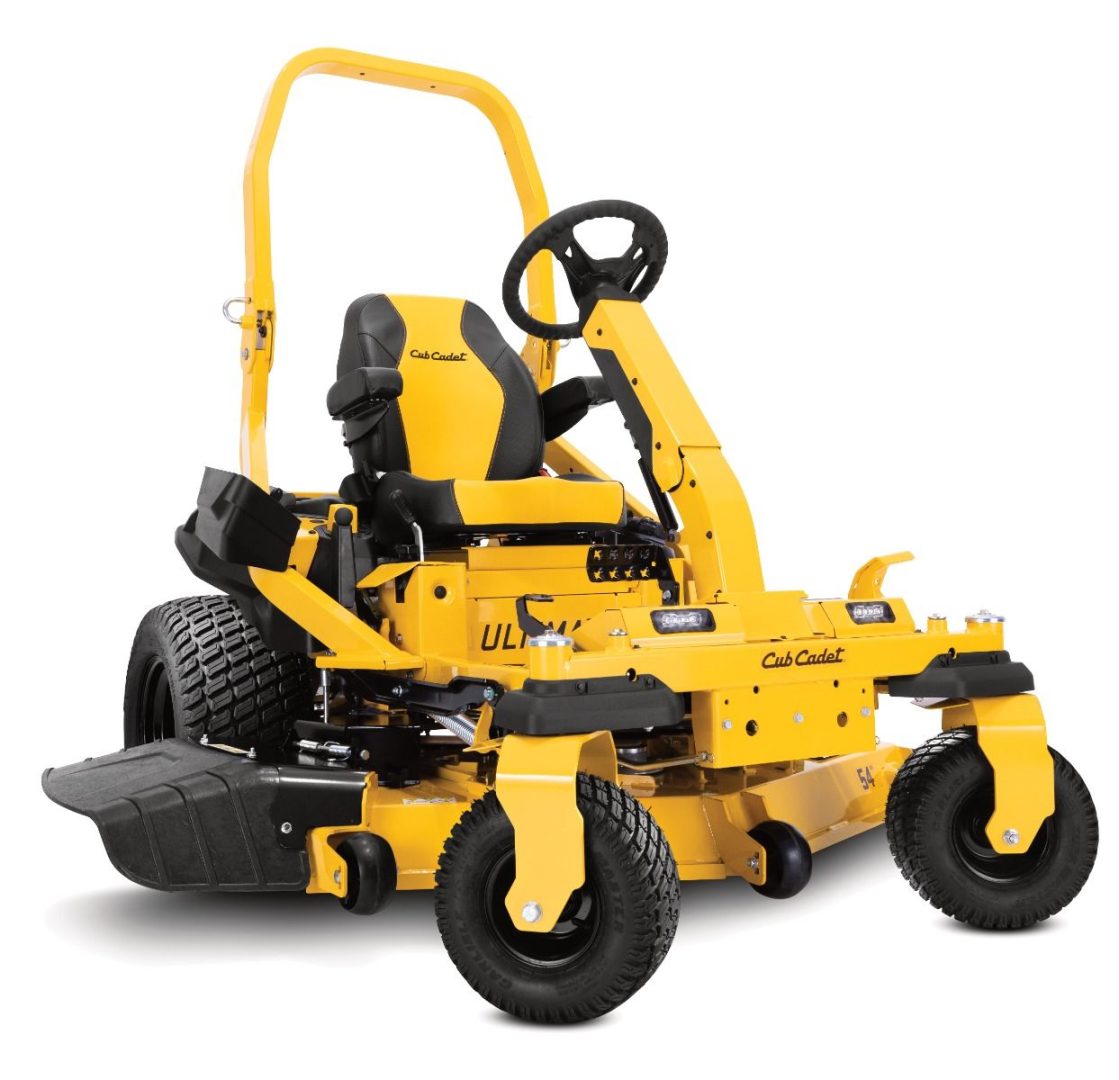

The Ultima ZTXS5 54 is engineered with commercial-grade features that allow you to tackle tough challenges on your large property.

Able to pull a zero-turn with ease, tackle tough hillsides of up to 20 degrees, and take on the long stretches of up to 12 acres in between, you might think theZTXS5 54 was built specifically for your yard. From stretching hillsides to dodging that pond and your favorite bushes, the ZTXS5 54 is ready for the job.

Synchro-Steer™ technology gives you control of all four wheels from the intuitive steering wheel, making our signature zero-turn possible. And, with a commercial-grade deck and engine, the ZTXS5 54 offers strength and the consistent cut quality you can depend on. Mow after mow and zone after zone. So you can be confident you won’t mow over that sapling and our tubular steel rollover will put your mind at ease on those hills. All while delivering the comfort you expect from an Ultima seat and armrests.

The Ultima ZTXS5 54 is engineered with commercial-grade features that allow you to tackle tough challenges on your large property.

54″ Fabricated Deck
Hydro Gear ZT-3200
24HP Kawasaki V-Twin
3 Year Warranty

Country of Manufacture – United States
Block Size – Up to 12 Acres
Engine – 24HP Kawasaki FR730V
Transmission – Hydro Gear ZT-3200
Cutting Width – 54 inches
Cutting Deck Construction – Fabricated Steel
Cutting Deck Thickness – 10 Gauge
Cutting Height Adjustment – 16 Position
Cutting Height Maximum – 120mm
Cutting Height Minimum – 25mm
Deck Wash – No
Anti Scalp Wheels – Yes
Cruise Control – No
Blade Engagement – Electric PTO
Blade(s) – 3 Blades
Seat – Premium High Seat with armrest
Turning Circle – N/A
Starting Key – Start
Tow Hitch – Yes
Reverse Mowing – Yes
Grass Catcher – Optional Extra
Mulch Plug – Optional Extra
Safety – Operator Presence Control
Front Tyres – 13 x 6.5 Inch
Rear Tyres – 22 x 12 Inch
Fuel Tank – 20.8 L
Roll Over Protection – Yes
Maximum Drive Speed – 13.7 km/h
Maximum Reverse Speed – 5.6 km/h
Maximum Slope Capability – 20 Degrees
Warranty – Engine – 3 Year Domestic / 2 Year Commercial
Warranty – Unit – 3 Year Domestic / 2 Year Commercial
Disclaimer – Specifications subject to change without notice and without incurring obligation. Images depicted on website are for Illustration purposes only. Actual products offered for sale may vary in design, features, attachments, and non-functional appearance.
